Setting REST Request Options


This page explains the REST Adapter in Bridge context. If you were looking for the same information regarding the PAS Designer, refer to REST Adapter in the Designer guide.

Using the REST Adapter, you can overwrite the settings coming from the component diagram dynamically.

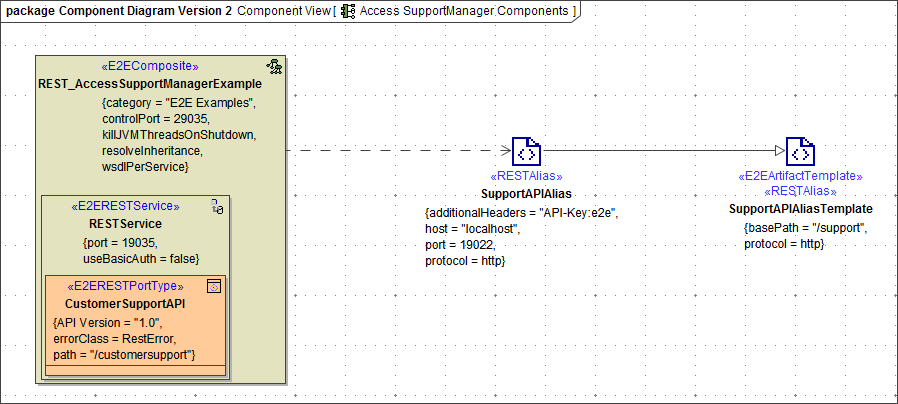

Figure: REST Adapter Components


You can do this by

  • creating an object of type RequestOptions, ...

  • setting the attributes and ...

  • providing this to the adapter call.

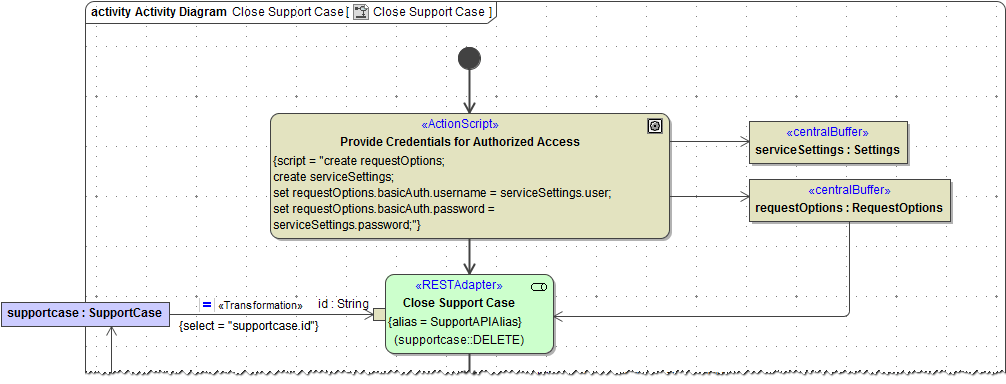

The figure below shows an example adapter call with request options.

Figure: Setting the Request Options Dynamically


Overview of Request Options Attributes and Elements


Attribute

Type

Description

Values/Example

additionalHeaders

Array of

HeaderField

All REST request header fields as an array of HeaderField classes containing name/value pairs.


options

Array of

Option

Specify native cURL options as listed in Setting cURL Options on the URL Adapter .

Use one of the following syntax rules:

  • values separated by ',' in one line

  • values separated by ' ' in one line

  • list of tagged values


ssl

SSL

Use this parameter to supply SSL information.


proxy

Proxy

Use this parameter to supply necessary proxy information.


additionalQueryParameters

Array of

Parameter

Use this parameter to provide additional query parameters to the REST service call.


followRedirects

Integer

Specify here the maximum number of redirects to follow.

any integer

basicAuth

Authentication

This parameter provides an object of type Authentication containing the user and the password.


basePath

String

Overwrite here the base path of the REST service.

a valid path, e.g. /support

host

String

Overwrite here the host running the REST service that has been defined in the component diagram.


port

Integer

Overwrite here the port through which the REST service is accessible.


protocol

String

Overwrite here the protocol through which the REST service is accessible.

http, https

ignoreHttpErrors

Boolean

If true, HTTP error codes >= 400 will not cause an exception in the model. This implies, that the response body is accessible even if HTTP errors occur. Default value is true.

true / false

jsonComposerOptions

ComposerOptions

Use this parameter to specify JSON composer options on the REST call. You can use these options to e.g. overwrite jsonKeepNulls from the REST alias.
